Select Cabinets (18-47U)

More features.

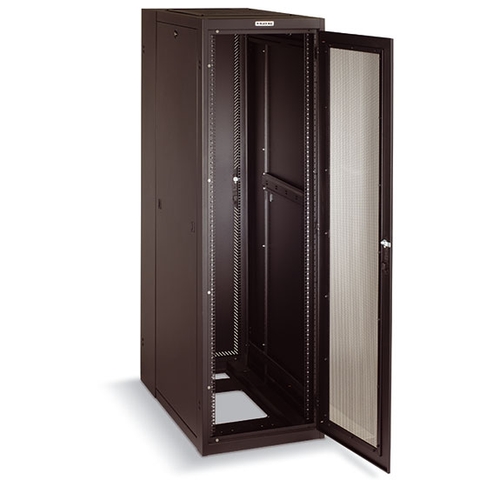

The Select Cabinet family offers a wide range of features for regular office and IT applications. A strong 600-kilogram weight capacity supports all but the most demanding applications. (For weight capacities up to 1000 kg, consider the Elite™ series of cabinets.)

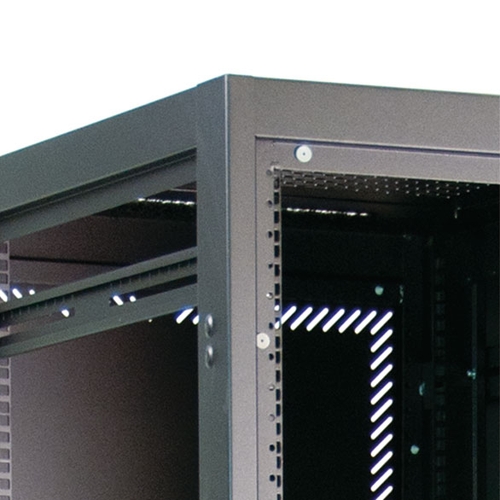

The cabinets is made of welded steel and contains two pairs of black powder coated, universal 19” M6 mounting rails including a package of M6 hardware. The cabinets arrive fully assembled and ready to populate.

More choices.
Select Cabinets are specifically designed to be adaptable to your exact needs. Whether you need a high airflow cabinet to keep your servers cool, or a small, secure cabinet for an office, the Select cabinet family has the solution for you.

Select a pre-configured cabinet or have one customized to your specifications and have it shipped directly to you . Choose from a wide range of sizes to suit all your data and server cabinet needs. Our Tech Support experts will help you specify the cabinet if you want it — free of charge.

More cable management.
Cable management is easy — cable knockouts on the top provide convenient cable entry. The cabinets feature multiple lacedown points throughout. For even more cable management, add our Horizontal and Vertical Lacing Bars.

More versatility.
Because the cabinets come with a wide range of choices in frame sizes, rails, doors, and top and side panels, they adapt to nearly any application.

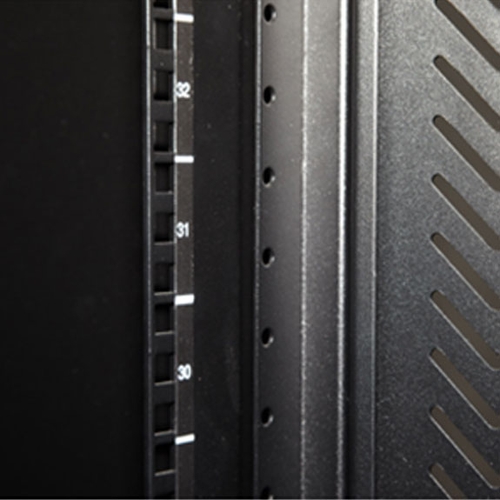

Rails with M6 square holes are standard in all our cabinets. They enable you to use vendor-supplied server rails that latch into the square holes to support servers, or to convert the square hole to a threaded M6 hole by using cage nuts. The rails are "U" marked to enable rapid and correct equipment positioning.

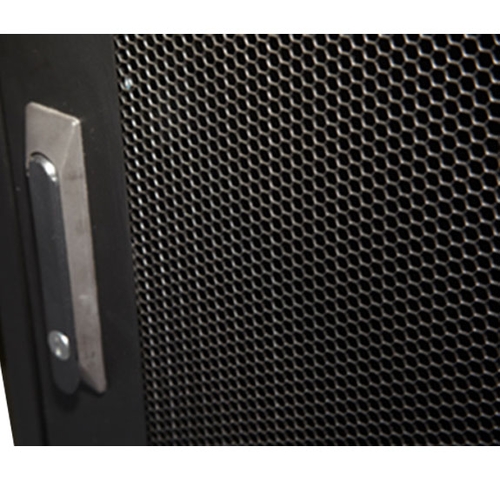

Cabinet doors are available in solid, high-flow mesh, split high-flow mesh, perimeter vented or toughened glass. You also can choose a cabinet with no doors. Side panels can be solid or vented, or you can leave them off. All mesh Doors, side panels and tops have our high-flow mesh, which improves airflow approximately 10% over typical cabinets.

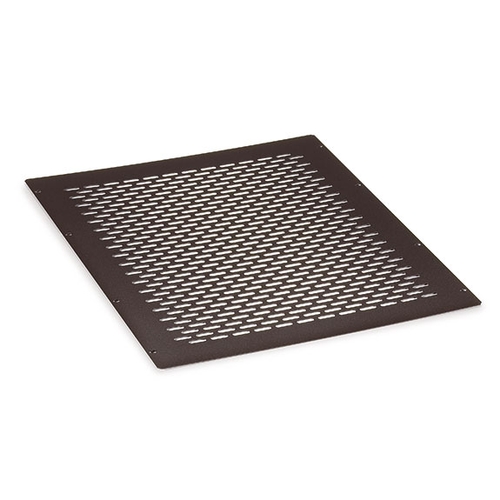

Cabinet tops are customisable , too — choose a solid ot mesh top panel, or a top with up to three fans, or use the top opening to rackmount up to 12U of shallow components such as patch panels or power strips. For more information, call our FREE Tech Support.

Pre-configured Select Cabinets.

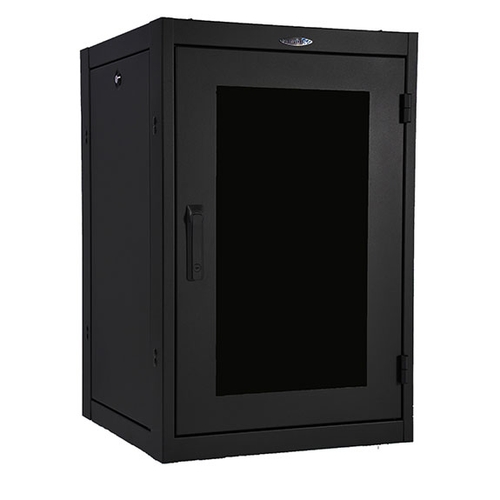

The pre-configured Select Cabinets are in 2 versions available with a toughened glass door, and a perimeter vented rear door, or with a mesh front and mesh rear door. All cabinets feature solid side panels, a mesh top, leg levelers, and a keyed lock.

Customized Select Cabinets.

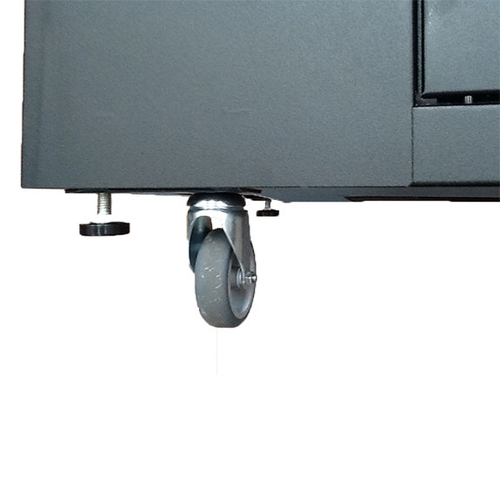

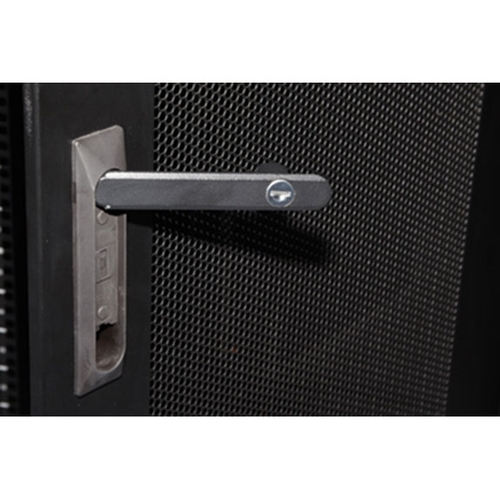

The Select Cabinets can be build exactly to your needs with short lead times. There is a big choice for doors (solid steel, mesh with 80% airflow, split mesh, perimeter vented steel or no doors at all), the side panels can be made of solid steel, or mesh, or left completely away. For the op choose a solid steel, a mesh, a 3-Fan unit, or none. Besides the leg levelers, there are also anti tip legs and castors available. Then decide on the lock type between keyed, combination, biometric, hybrid or none. Equip your cabinets according to your needs with a comprehensive cabinet accessory portfolio.
Please call our Free Tech Support, to assist you with the cabinet configuration and price information.
