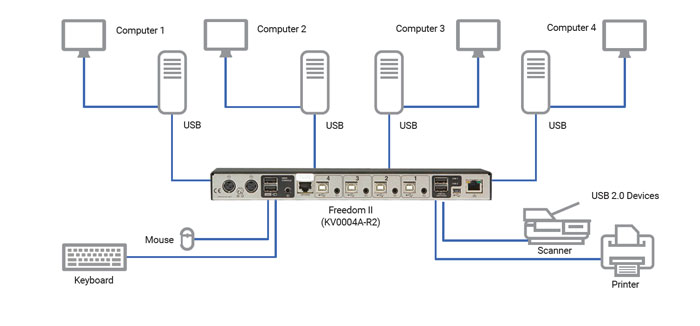

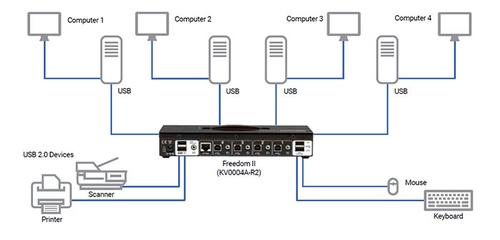

The Freedom II KVM Switch enables a single USB keyboard mouse user to easily access information and control operations across four USB computer systems and monitors, saving time, money, and space.

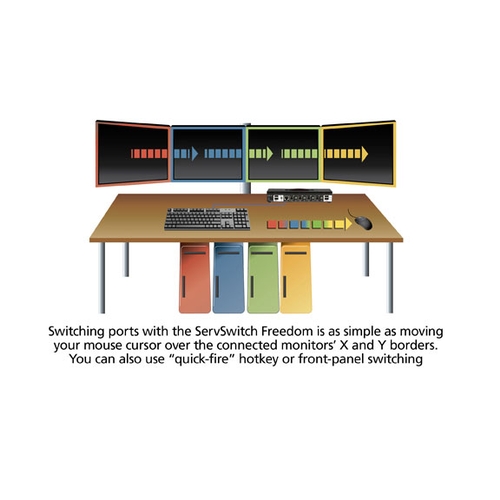

The Freedom II works like an extended desktop switch on a single computer. Once you configure your screen layout for the attached PCs, switching ports is as simple as moving your mouse cursor over the screens' X and Y borders.
The Freedom is ideal in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices.
Switching options
Choose from five ways to switch: mouse buttons, keyboard hotkeys, front-panel buttons, remote control by another device or via glide and switch technology.
The Freedom LED Kit (KV0004A-LED) is a 10-port accessory that supports up to 10 LEDs of variable birghtness and colors. Connected to the ServSwitch Freedom. The LEDs show where the keyboard/mouse controls are located. Each LED designates a monitor connection, so this device can support up to 10 monitors.
Additionally, the Freedom II integrates with the Black Box Agility IP-based KVM system. The Freedom can interface with up to four or eight Agility receivers, and then switch the Agility targets using just one keyboard and mouse.
Approvals — CE, RoHS, FCC
Connectors —

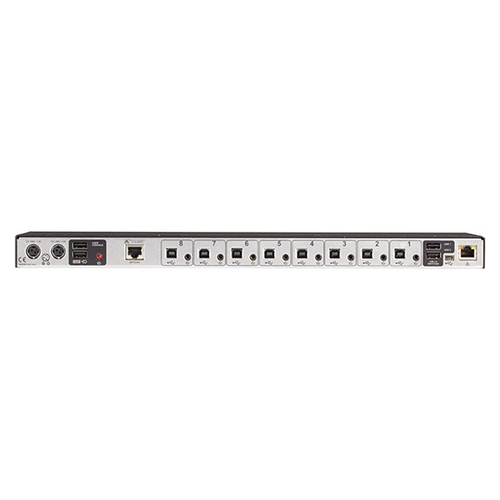

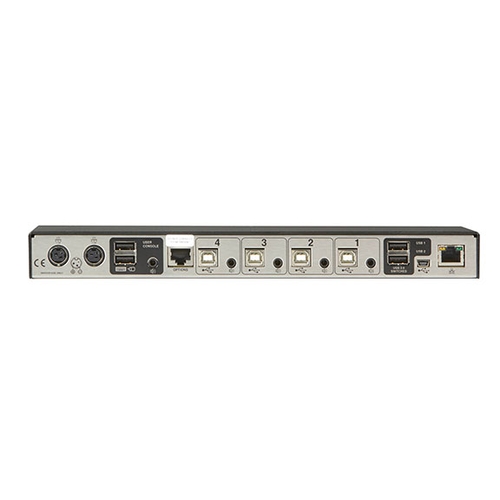

CPU/server side: (4) or (8) USB Type B F; (4) or (8) 3.5-mm audio inputs;
User Console: (2) USB HID Type A F; (2) USB 2.0 Type A F; (1) 3.5-mm audio;
Other: (1) USB mini B; (1) RJ-45 options port; (1) RJ-45 network configuration port; (2) 3-position locking power connector
Hardware Compatibility — All computers with USB interfaces
Software Compatibility — Driver compatible with Windows® 10/11
Power —
Dual DC connectors (one power adapter included)
External: Input: 100–240 VAC, 50–60 Hz;
Output: 12 VDC, 1.5 amp
Consumption: 18 W

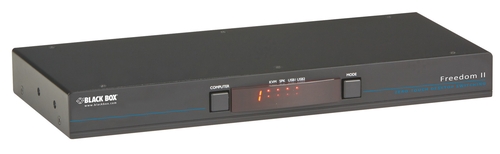

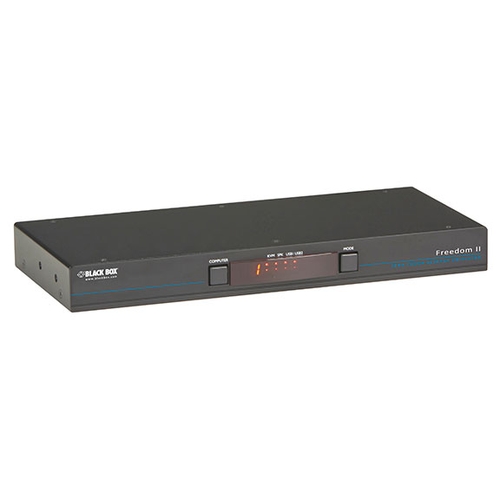

User Controls — (2) Front push buttons (Computer and Mode), mouse activated switching
Operating temperature — 0 to 40⁰ C
Dimensions —
KV0004A-R2: 3.1H x 29W x 12.8D cm
KV0008A-R2: 3.1H x 43.3W x 15.8D cm
Weight —
KV0004A-R2: 0.9 kg (2 lb.)
TAA compliant — YES
KV0004A-R2

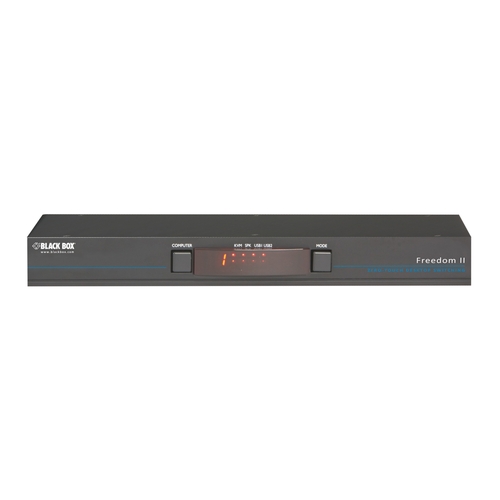

(1) Freedom II 4-Port Switch
(1) 12VDC 1.5A Power Supply with IEC320 C14 Input
(1) Flash Upgrade Adapter
(4) Self-Adhesive Feet
KV0008A-R2

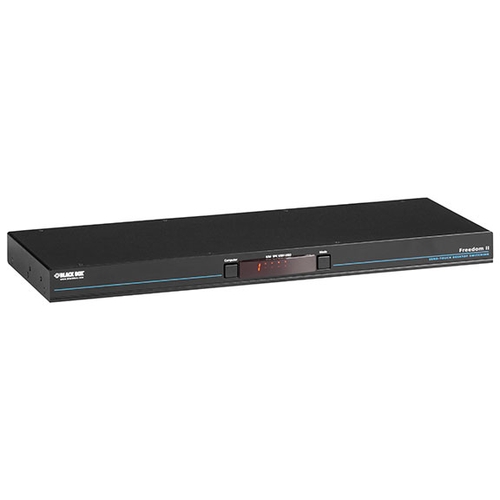

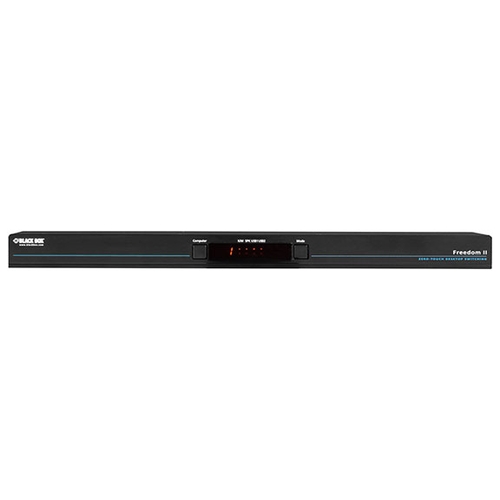

(1) Freedom II 8-Port Switch
(1) 12VDC 1.5A Power Supply with IEC320 C14 Input
(1) Flash Upgrade Adapter
(4) Self-Adhesive Feet
