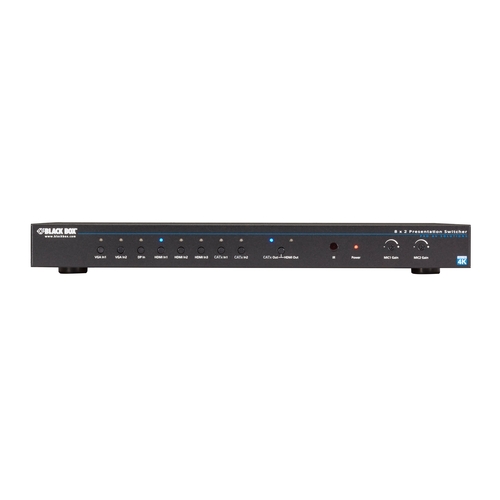

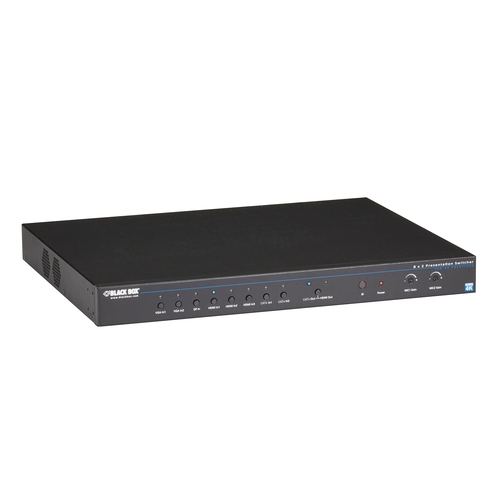

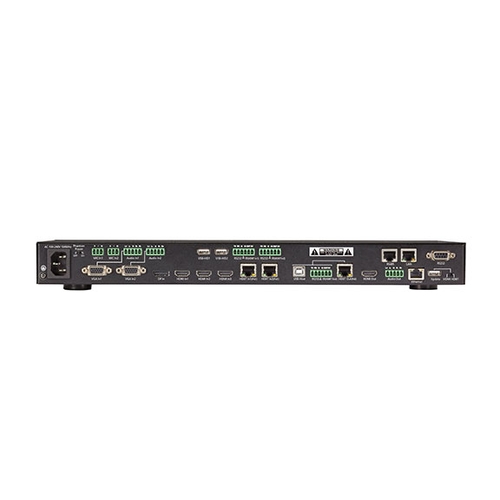

8x2 Presentation Switcher - 4K, HDMI, DisplayPort, VGA, CATx

Simplify classroom and large conference room system integration. This is the only switcher your room needs.

Approvals — CE, FCC

Video —
Input:
3 x HDMI IN
2 x VGA IN
1 x DisplayPort IN
2 x CATx IN
Input Signal Type: HDMI 1.4, CATx
Input Resolution Support
VESA:
800 x 600@60Hz
1024 x 768@60Hz
1280 x 768@60Hz
1280 x 800@60Hz
1280 x 960@60Hz
1280 x 1024@60Hz
1360 x 768@60Hz
1366 x 768@60Hz
1440 x 900@60Hz
1600 x 900@60Hz
1600 x 1200@60Hz
1680 x 1050@60Hz
1920 x 1200@60Hz
HDTV:
720 x 480@60Hz
720 x 576@50Hz
1280 x 720@50/60Hz
1920 x 1080@50/60Hz
3840 x 2160@30HzM
Input Video Level:0.5-1.2 V p-p
Input DDC Signal: 5V p-p
Maximum Pixel Clock: 297 MHz
Output:
1 x HDMI OUT
1 x CATx OUT
1 x Stereo audio
Output Signal Type: HDMI 1.4, CATx
Output Resolution Support
VESA:
800 x 600@60Hz
1024 x 768@60Hz
1280 x 768@60Hz
1280 x 800@60Hz
1280 x 960@60Hz
1280 x 1024@60Hz
1360 x 768@60Hz
1366 x 768@60Hz
1440 x 900@60Hz
1600 x 900@60Hz
1600 x 1200@60Hz
1680 x 1050@60Hz
1920 x 1200@60Hz
HDTV:
720 x 480@60Hz
720 x 576@50Hz
1280 x 720@50/60Hz
1920 x 1080@50/60Hz
3840 x 2160@30Hz
Video Impedance:100 Ω
Deep Color:
1080p: 36bit
4K: 24bit

Audio —
Input:
2 x Microphone IN (3 pin phoenix connector)
2 x Balanced Stereo Audio IN (5 pin phoenix connector)
Output: 1 x balanced stereo audio OUT (5-pin phoenix connector)

Control Method—RS-485, RS-232, LAN, Web UI, IR remote, front panel buttons

Power —
ESD Protection:
Human-body Model: ±8kV(Air-gap discharge)
±4kV(Contact discharge)
Surge Protection: Voltage: ±1 kV (ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst: Data communication cord: 1 kV
Power Supply: 100 to 240 VAC, 50/60 Hz
Power Consumption: 73.5 Watts, maximum

Physical —
Dimensions: 33H x 44W x 4.3D cm (13"H x 17.3"W x 1.7"D), Rack Space Required: 1U
Weight: 4.7 kg (10.4 lb)

Environmental —
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 70°C
Humidity: 10% to 90%, non-condensing
