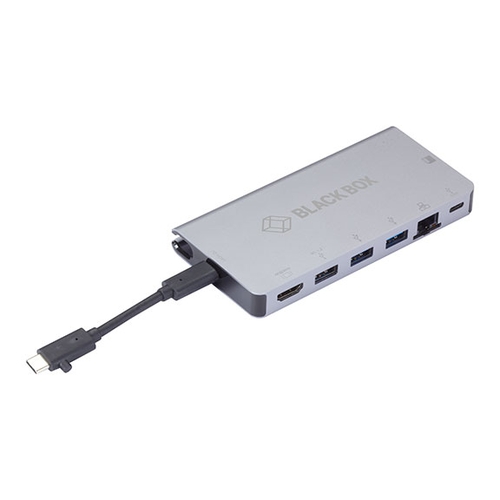

USB-C Docking Station

Portable, mini USB-C docking station

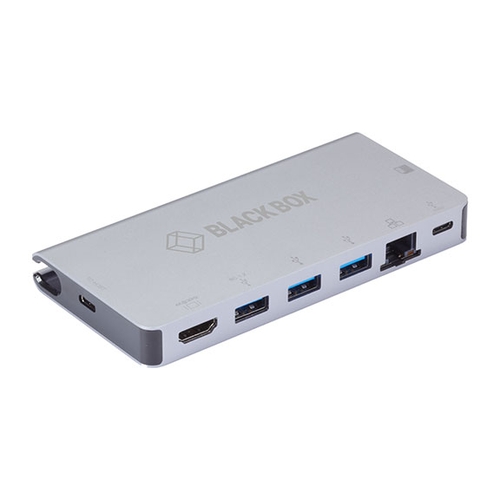

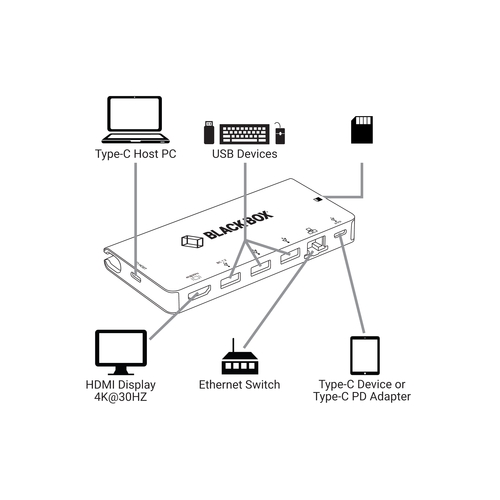

Connect a 4K HDMI monitor, keyboard, and mouse to your MacBook Pro or Windows laptop with this multi-port adapter. The dock includes a USB C host port and cable, a USB C charging port, an HDMI HD video port, a LAN port, three high speed USB 3.0 type A ports, and an SD/uSD memory card reader.

Super-Fast and USB Backward-Compatible
The USB C docking station supports USB 3.0 super speed (5 Gbps) transmission. Even better, it’s backward-compatible with USB 2.0, so you aren’t limited by legacy hardware.

Supports USB power delivery
Power both the Docking Station and your laptop, using your laptop’s USB-C power adapter (supports USB Power Delivery 3.0, up to 100W).

Works on a Range of Platforms
This docking station can work on all PCs and mobile phones that support DP Alt Mode.

Applications

• Extended workspace: laptop users can work on larger screens with keyboard and mouse as well as get connected o a LAN
• Enterprise: Executives and sales professionals with laptops can create a fully equipped home workstation
• Education: Students can create dorm room workspace supporting larger screens with keyboard and mouse control
• Conferencing: Can act as a portable hub for sales professionals connecting laptops, tablets, phones to conference room screens or projectors.

Compatibility— Works with Windows, Mac, Chrome

USB Charging—
(2) Type-C female ports support both data (5 Gbps) and PD Charging 100W (20 V / 5 A),
plug and play;
Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected when plugging in and out PD Adapter.

Connector Speed—
(3) USB 3.0 type A ports support super speed (5 Gbps) transmission, backwards-compatible with USB 2.0. One of the three USB-A ports supports BC 1.2, the power of this port can be up to 7.5W (5V/1.5A);

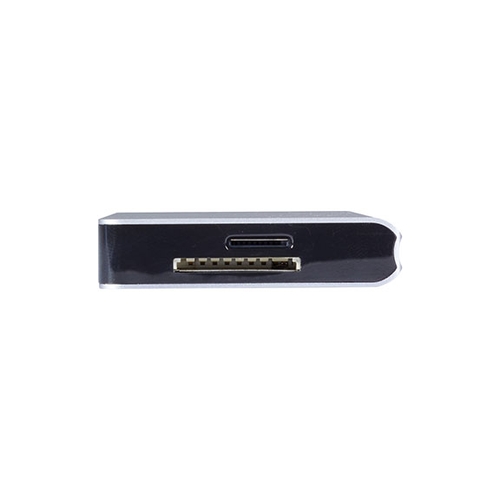

Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5 Mbyte/s)/SDR25 (25 Mbyte/s)/SDR50 (50 Mbyte/s)/DDR50 (50 Mbyte/s)/ SDR104 (104 Mbyte/s) Allows SD and Micro SD card to work at the same time

Approvals— FCC, CE, CAN ICES-3(B)/NMB-3(B)

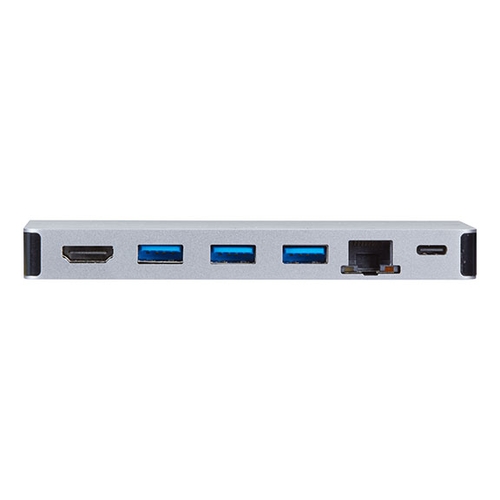

Connectors—

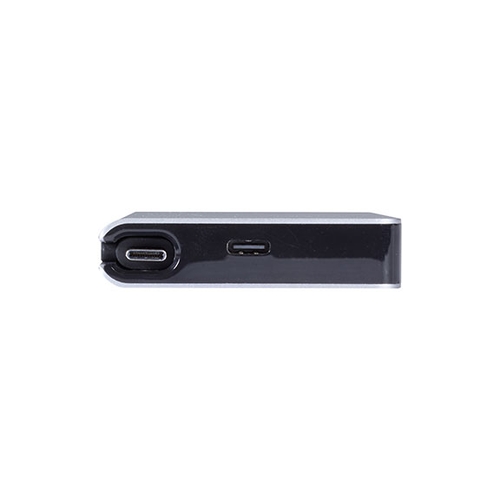

Input: (1) USB-C Female (with Type-C M to M cable);
Output: (3) USB 3.0 Female;
(1) USB-C Female (for data & charging);
(1) RJ45;
(1) HDMI Female;
(1) Micro SDX;
(1) SD/MMCX;
(1) HDMI port: Supports HDMI resolution up to 4K @ 30 Hz , 2K @ 30 Hz

Power—
A power supply is not required to operate the USBC2000.
A power supply is not included with the USBC2000.
If you plug your laptop's USB-C power adapter into the USBC2000's USB C charging port, it will send power to your PC over the USB-C host port (supports USB Power Delivery 3.0, up to 100W, 20V/5A) and will also send power to the USB type A charging port (supports BC 1.2, up to 7.5W, 5V/1.5A).
Dimensions — 14.2H x 60.96W x 127D cm

USBC2000C:
(1) USB C Docking Station
(1) USB 3.1 G2 Type-C M to M cable (stores inside main unit)

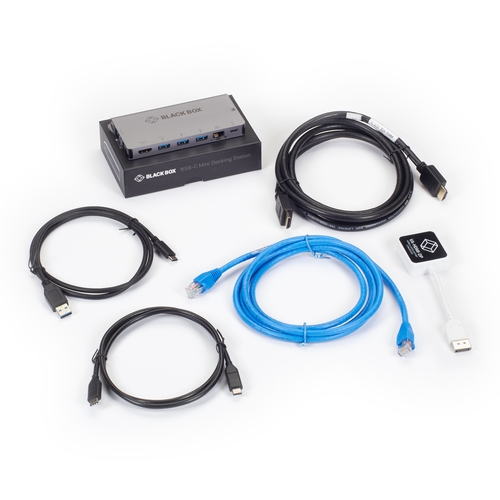

USBC2000-DP-KIT:
(1) USB C Docking Station
(1) HDMI to DisplayPort Adapter
(1) DisplayPort 1.2 Audio/Video Cable, 1.8m
(1) USB 3.1 G2 Type-C M to M cable (stores inside main unit)
(1) USB 3.1 G2 Type-C M to M cable, 1m
(1) USB 3.1 G1 Type-C M to Type-A M cable, 1m
(1) GigaTrue Cat6 UTP 550MHz Patch Cable, 2.1m

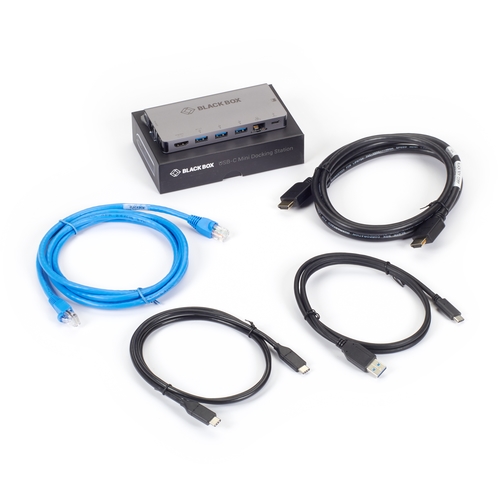

USBC2000-HDMI-KIT:
(1) USB C Docking Station
(1) High Speed HDMI with Ethernet Cable, 2m
(1) USB 3.1 G2 Type-C M to M cable (stores inside main unit)
(1) USB 3.1 G2 Type-C M to M cable, 1m
(1) USB 3.1 G1 Type-C M to Type-A M cable, 1m
(1) GigaTrue Cat6 UTP 550MHz Patch Cable, 2.1m

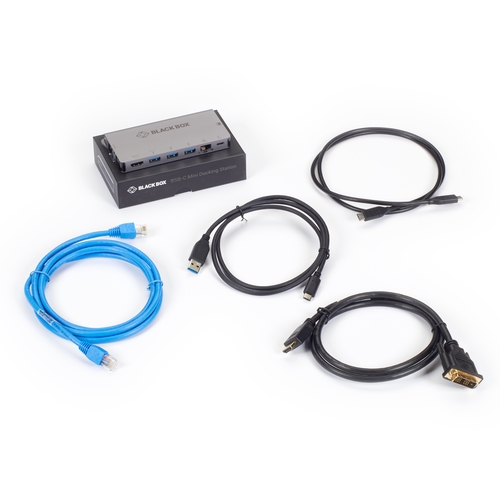

USBC2000-DVI-KIT:
(1) USB C Docking Station
(1) HDMI to DVI Adapter Cable, 2m
(1) USB 3.1 G2 Type-C M to M cable (stores inside main unit)
(1) USB 3.1 G2 Type-C M to M cable, 1m
(1) USB 3.1 G1 Type-C M to Type-A M cable, 1m
(1) GigaTrue Cat6 UTP 550MHz Patch Cable, 2.1m

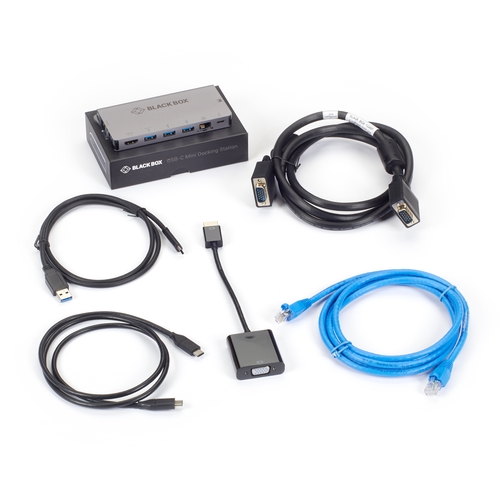

USBC2000-VGA-KIT:
(1) USB C Docking Station
(1) HDMI to VGA w/Audio Adapter
(1) VGA Video Cable, 1.5m
(1) USB 3.1 G2 Type-C M to M cable (stores inside main unit)
(1) USB 3.1 G2 Type-C M to M cable, 1m
(1) USB 3.1 G1 Type-C M to Type-A M cable, 1m
(1) GigaTrue Cat6 UTP 550MHz Patch Cable, 2.1m
