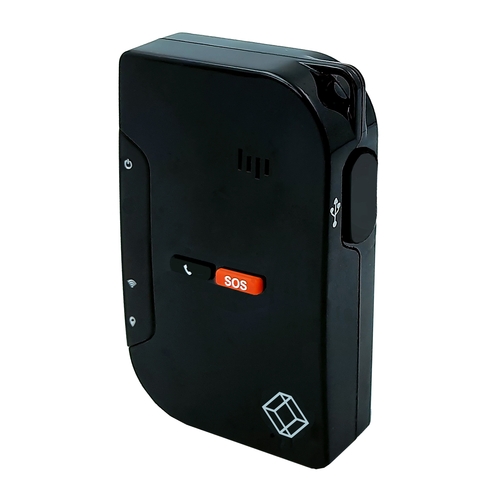

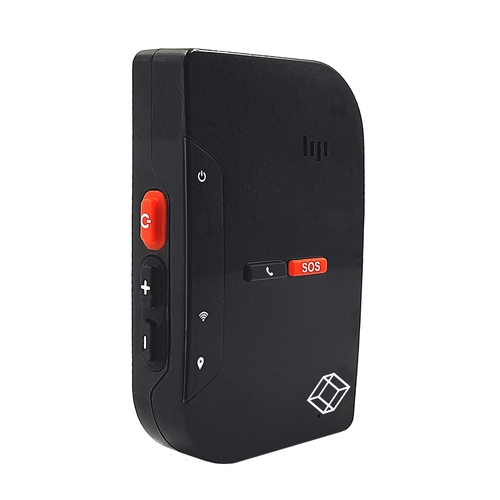

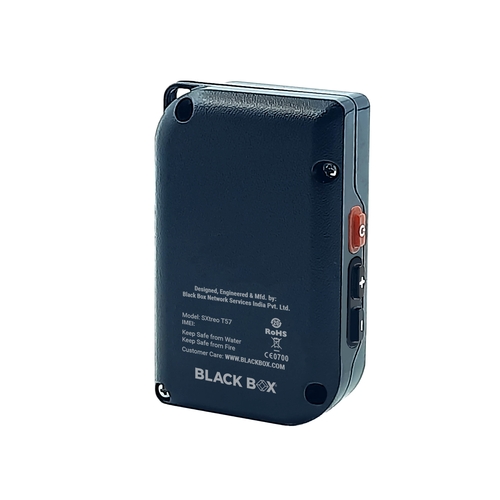

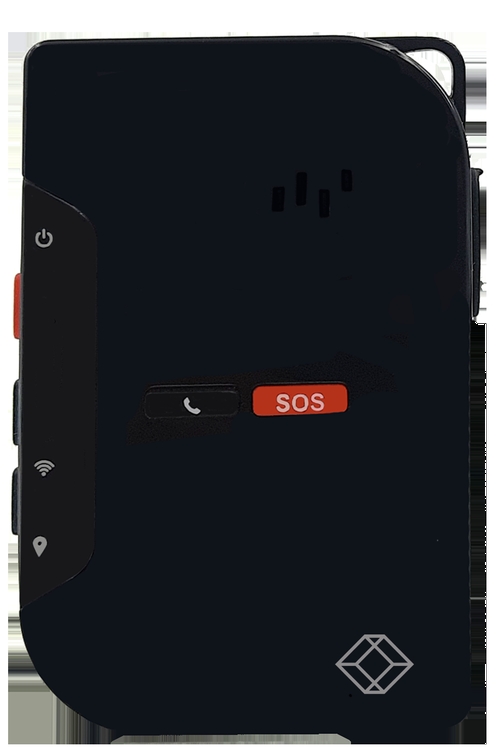

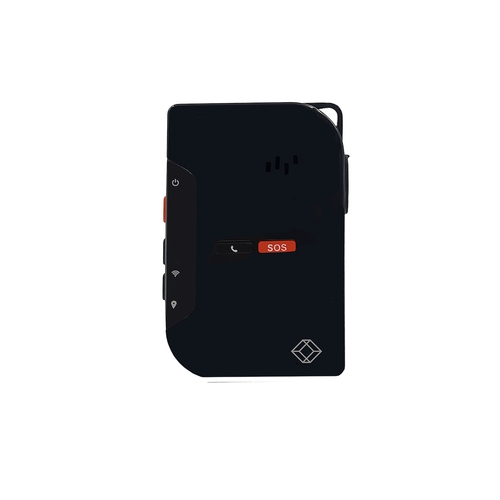

Magikk Industrial IoT Wearable Device

Magikk is the industrial IoT wearable device that helps you connect workers

Magikk has multiple sensors and voice alerts for industrial usage. Combining sensor data with satellite positioning, it ensures that workers’ locations are visible to the Command and Control Center and the Safety Officers. Magikk is a portable, lightweight, rugged tracking device built to withstand extreme environmental conditions, making it easier to locate, track, and communicate with personnel, no matter where they are.

Equipped with an emergency fall-down alert, SOS functions, and an easy-to-use GPS tracking system, you can implement real-time tracking anywhere through a mobile phone or laptop.

Used for all lone-worker scenarios in pipeline monitoring, rail track monitoring, airport tarmac inspection, construction sites, industry premises, or bridge monitoring, Magikk Wearable for Connected Workers acts as a first-responder system. Press a button and it sends out all information in the form of voice or data, allowing the organization to act quickly and decisively.

Certifications CE, RoHS, IP65, Drop Test, Vibration Test
System : GPS/QZSS L1 C/A, GLONASS
SBAS SBAS L1 C/A: WAAS, EGNos, MSAS, GAGAN
Channel / chip 33 tracking channels / 99 acquisition channels; high-sensitivity receiver
Sensitivity tracking and nav: –167 dbm • cold starts (aided): –149 dbm • reacquisition: –161 dbm
Horizontal accuracy <2.5 m cep1
Acquisition time cold start: 35s • aided start: 2s • reacquisition: 1.5s
GSM/GPRS gsm 850 / 900 / 1800 / 1900 mhz
On-Board 3-axis accelerometer, vibration motor
Type rechargeable li-ion
Capacity 3.7v 1000 mah battery, 15 hrs run time (under typical conditions).
Usb micro usb 2.0 for charging and data transfer
Led power on/off, gsm, and gps signal status, low-battery indication
Operating temperature 14 to 140ºf (-10 to +60ºc)
Storage temperature -4 to 158ºf (-20 to +70ºc)
Water and dust proof ip 65
Shockproof multiple drops from 6' (1.8 m)
Humidity 10 to 90% rh ±2 %
Dimension 80 x 55 x 25 mm
Weight 100g

(1) Magikk personal tracker
(1) AC charger
(1) Data cable
(1) Lanyard
